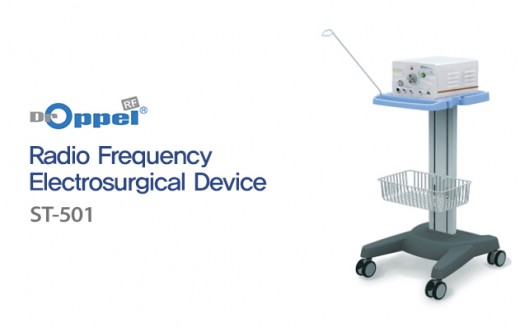

4MHz Radio Frequency Surgical Device

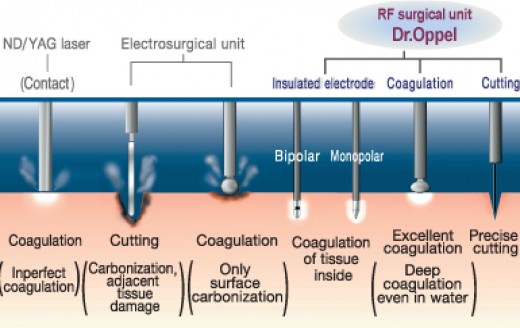

Dr.Oppel’s electrode is not being heated by itself. Electrode lets the cellular tissue produce the joule heat, and operates hemostasis, cutting and coagulation. 4MHz radio frequency makes possible precise cutting and deep coagulation even in water. Moreover, coagulation depth is determined by electrode as 5mm, 3mm and 2mm.
There is no carbonization and damages to the surrounding cellular tissue by electric spark and safety can be secured because this system is free from electric shock and burn which current electric surgical units make.

Applications:
•    Complete colorectal - Hemorrhoid / fistula / fissure
•    General Surgery
•    OB.Gynaecology
•     ENT
•     Dermatology
•    Plastic Surgery
•    Urology
No Recurrence cost - all reusable electrodes..........may be few electrodes will have to be replaced every 3 years once.

Specification:

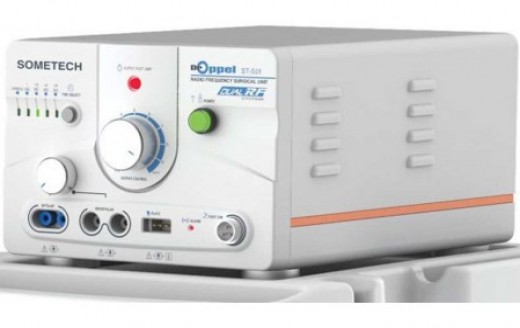

•    Model Name             :    Dr.Oppel ST-501
•    Output Power            :    MONOPOLAR
                                                130W ± 20% (Average power on 100 load)
                                             BIPOLAR
                                               90w ± 20% (Average power on 50 load)
•    Frequency                  :    4MHz
•    Input Voltage              :   (Customer Made)    :    100 /110 /120 /220 /230 /240 VAC, 50/ 60Hz

•    Time Selection            :    continuous, 1 Sec, ½ Sec, ¼ Sec, 1/8 Sec
•    Power consumption    :    400VA+10% under on maximum load
•    Weight                         :    10Kg
•    Dimension                   :    Main Unit: 225(W) x 300(L) x 155(H)mm
